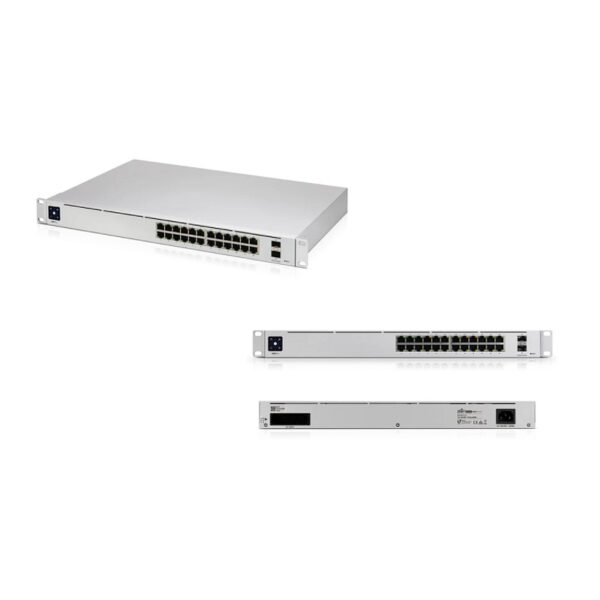

– Layer 3 switch with (24) GbE RJ45 ports and (2) 10G SFP+ ports
– The Switch Pro 24 (USW Pro 24) is a fully managed switch with (24) GbE RJ45 ports and (2) 10G SFP+ ports
– The USW Pro 24 combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server
– The USW Pro 24 is an ideal aggregation and access layer switch for any UniFi system
– It combines innovative, near-silent cooling capability with SmartPower RPS (USP RPS) power redundancy
– The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app
Features
– 1× 1.3" LCM color touchscreen with AR switch management
– 24× GbE RJ45 ports
– 2× 10G SFP+ ports
– 1× USP RPS DC input
– Near-silent cooling
– Layer 3 switching features
Specifications
INTERFACES
– Interfaces Networking:
24× 10/100/1000 RJ45 Ports
2× 1/10G SFP+ Ethernet Ports
– Management: Ethernet In-Band
– Total Non-Blocking Throughput: 44 Gbps
– Switching Capacity: 88 Gbps
– Forwarding Rate: 65.472 Mpps
– Universal Input: 100-240VAC, 50/60 Hz
– USP RPS DC Input: 11.5VDC, 2.61A
– Power Supply: AC/DC, Internal, 36W
– Voltage Range: 100 to 240VAC
– Max Power Consumption: 30W
– LEDS:
* RJ45 Data Ports: Speed/Link/Activity
* SFP+ Data Ports: Link/Activity
– ESD/EMP Protection: Air: +/- 16 kV, Contact: +/- 12 kV
– Shock and Vibration: ETSI300-019-1.4 Standard
– Operating Temperature: -5C to 45C (23F to 113F)
– Operating Humidity: 10% – 90% Noncondensing
– Certifications: CE, FCC, IC
