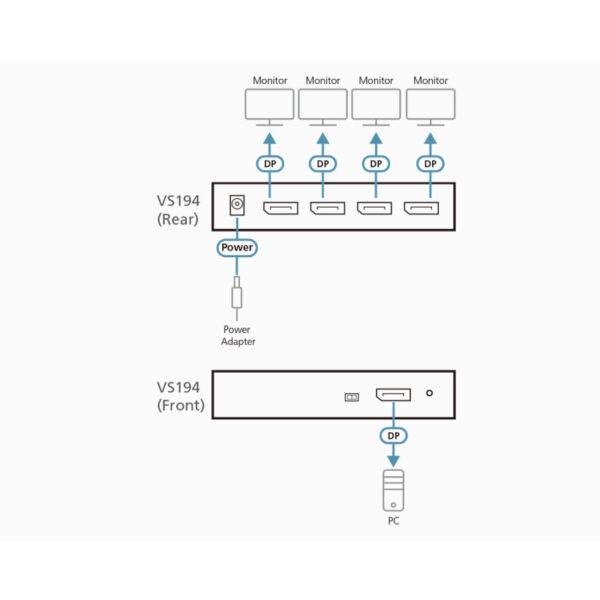

– The VS194 4-Port 4K DisplayPort Splitter is the perfect solution for anyone who needs to send one source of DisplayPort high definition video to 4 DisplayPort displays. The VS194, not only splits but also expands DisplayPort audio/video signals on 4 DisplayPort monitors, is ideal for any multi-display application.
– The VS194 is compatible with DisplayPort 1.2a and can support up to 4K resolution at 60 Hz, making it effective and ideal for use with all DisplayPort displays in corporate, educational, and commercial settings.
Specifications
Video Output
– Interfaces: 4 x DisplayPort Female (Black)
– Max. Distance: 4.6m (4096 x 2160 / 3840 x 2160 60Hz)
*tested with 2L-7D04DP
Video Input
– Interfaces: 1 x DisplayPort Female (Black)
– Max. Distance: 4.6m (4096 x 2160 / 3840 x 2160 60Hz)
*tested with 2L-7D04DP
Video
– Compliance: DP 1.2a; HDCP 1.3
– Max. Resolution: Up to 4096 x 2160 / 3840 x 2160 60Hz
– Max. Data Rate: 21.6 Gbps (5.4 Gbps per lane)
Connectors
– Power: 1 x DC Jack
Power Consumption:
– DC5V:3.36W:44BTU
Environmental
– Operating Temperature: 0-40 °C
– Storage Temperature: -20 – 60 °C
– Humidity: 0 – 80% RH, Non-Condensing
Physical Properties
– Housing: Metal
– Weight: 0.33 kg ( 0.73 lb )
– Dimensions (L x W x H): 12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.)
– Carton Lot: 20 pcs
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
